CAR CONTROLLER AS A MOBILE CENTER

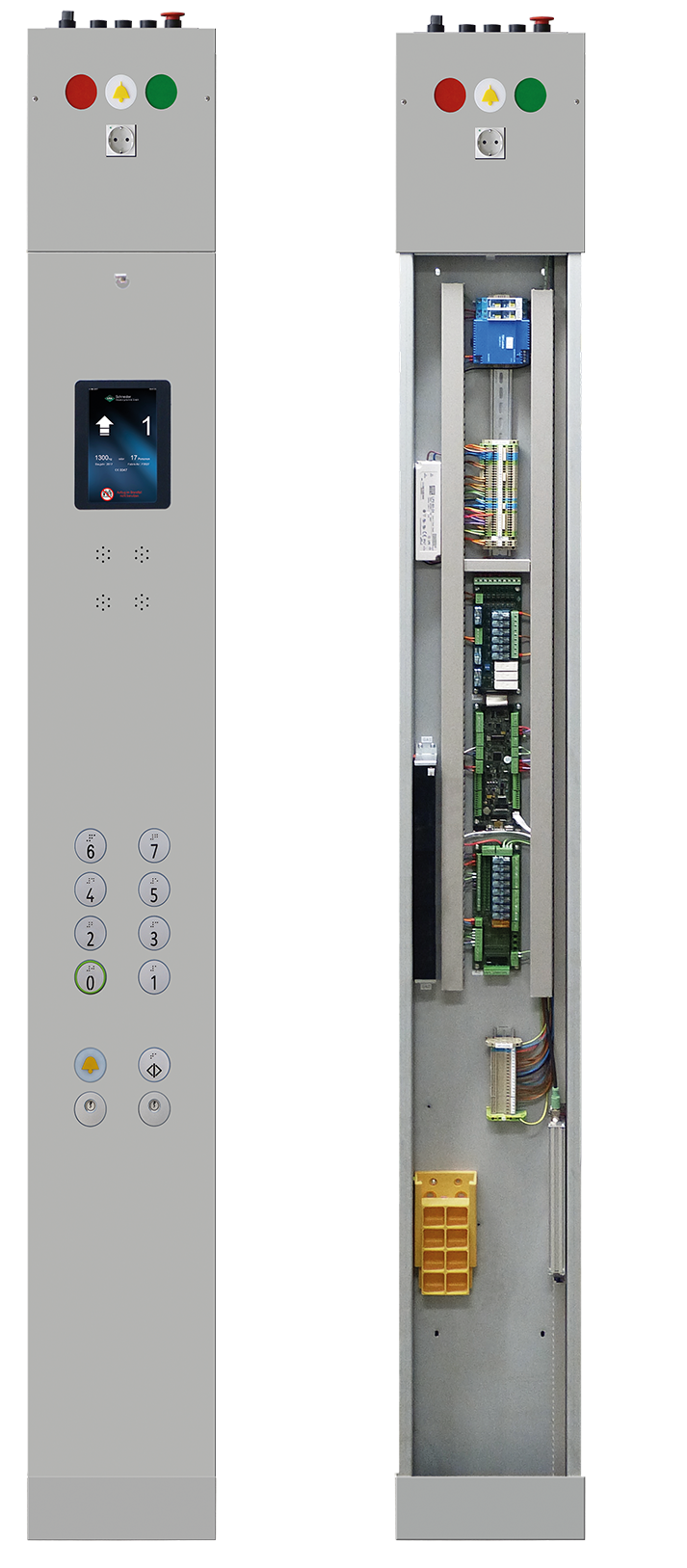

Using a panel (e.g. hinged panel PK1) allows for an absolutely compact solution, both for the shaft controller (US) and for the car controller (KS).

In the panel box:

• central connection point for the entire car installation
• traveling cable connection
• absolute encoder reading head
• in the KS: the LiSA20/21 boards including power supply and batteries

In the panel head part:

• all switches and buttons which are usually installed in an inspection box. Emergency light alarm button and light fields for status indication of various components for safeguarding in case of reduced shaft head

In the hinged panel front:

• all panel components, extended by an emergency light alarm button
• car intercom
• optional: emergency call system
