SYSTEM SOLUTIONS USING THE MODULAR CONTROLLER DESIGN



SYSTEM SOLUTIONS USING THE MODULAR CONTROLLER DESIGN



SYSTEM SOLUTIONS FOR LIFTS WITH MACHINE ROOM – UPGRADE ACCORDING TO EN81-20



Controller in the top machine room (MoS) + in the bottom machine room (MuS):

MoS and MuS are the solution for an upgrade according to EN81-20:

– minimum installation time with

  • box system -> traveling cable only to the middle of the shaft
  • entire kit beeing pluggable
    LiSA shaft light
  • car panels and landing panels as surface-mounted versions

– E20Box with bypass and reset functions



Controller in the top machine room (MoS):



Controller in the bottom machine room (MuS):



SYSTEM SOLUTIONS FOR LIFTS WITHOUT MACHINE ROOM



Control electronics in UBox (US) – the shaft controller + mobile control electronics in the car (KS) – the car controller

US and KS are the solution for new constructions according to EN81-20:

– minimum installation time with

  • box system -> traveling cable only to the middle of the shaft
  • entire kit beeing pluggable, including landing panels and car panels

– BBox with all components for emergency rescue and/or checks carried out by an authorized inspection agency, as well as for the bypass and reset functions

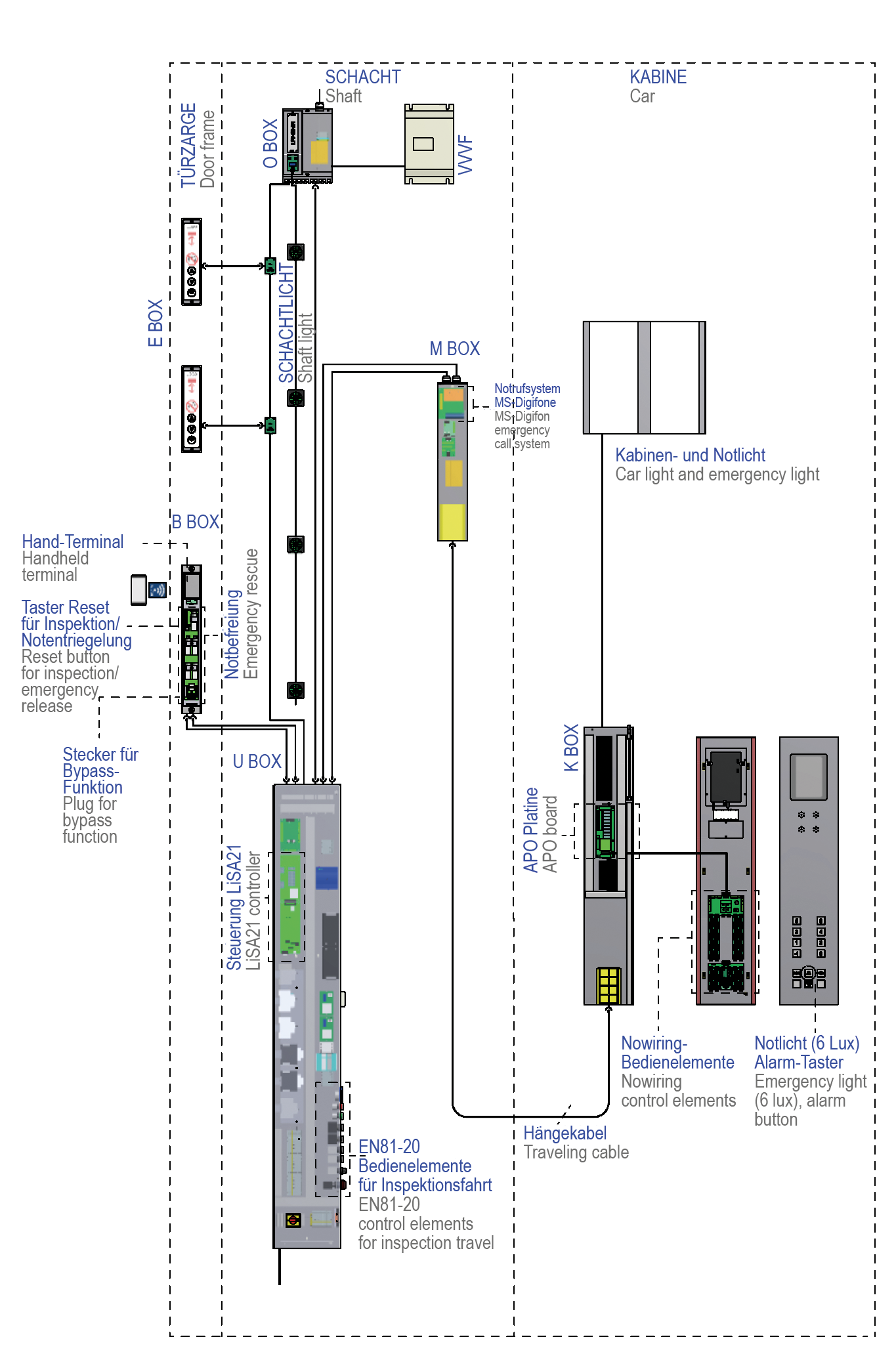

Control electronics in UBox (US) – the shaft controller

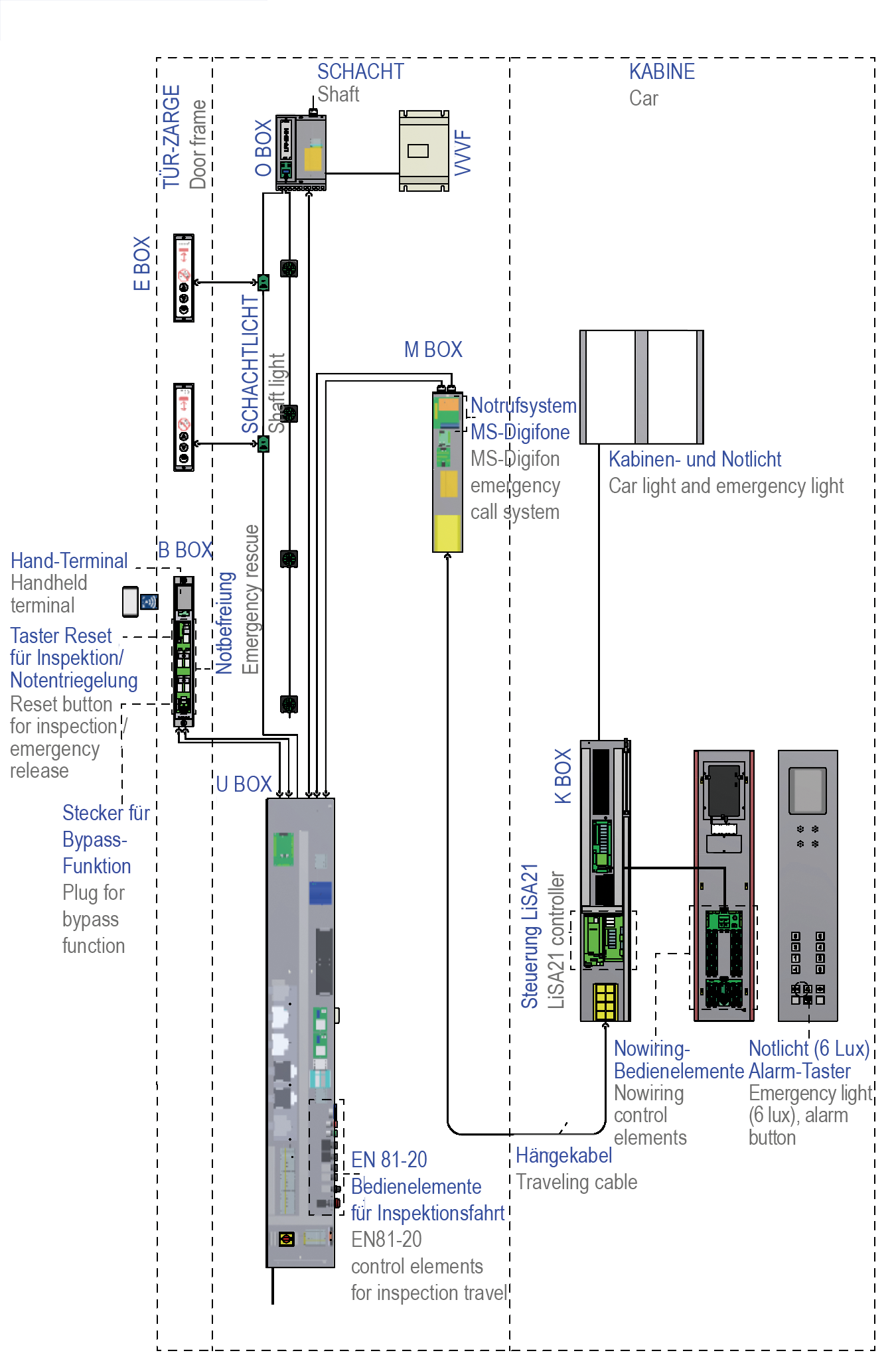

Mobile control electronics in the car (KS) – the car controller

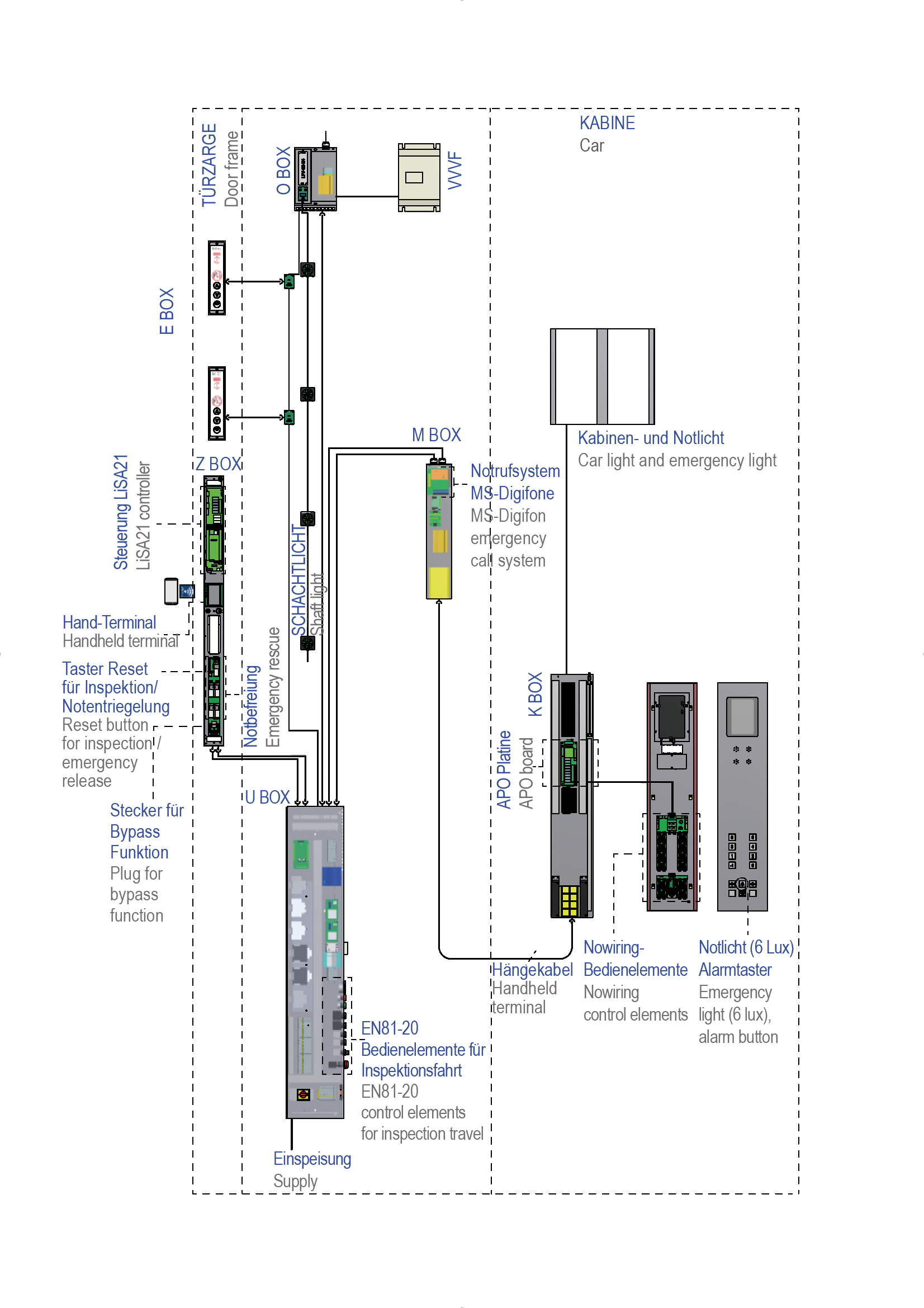

Control electronics in ZBox (ZS) – the door frame controller

In case of the ZS, the so-called ZBox i used instead of the BBox.

The difference from the US is that the control electronics is shifted from the UBox to the ZBox.

Tis allows for an ever perfect access to the controller.
